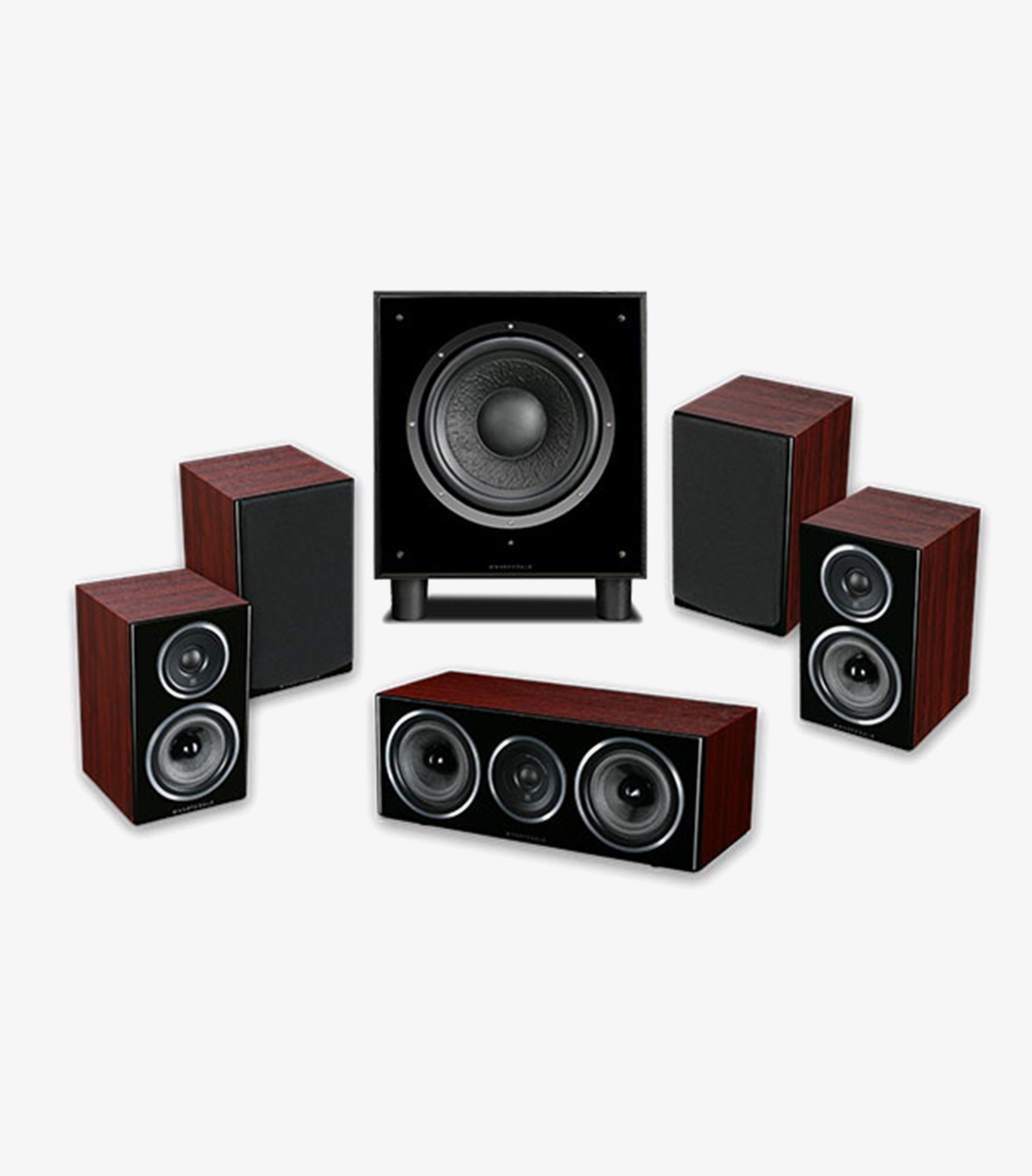

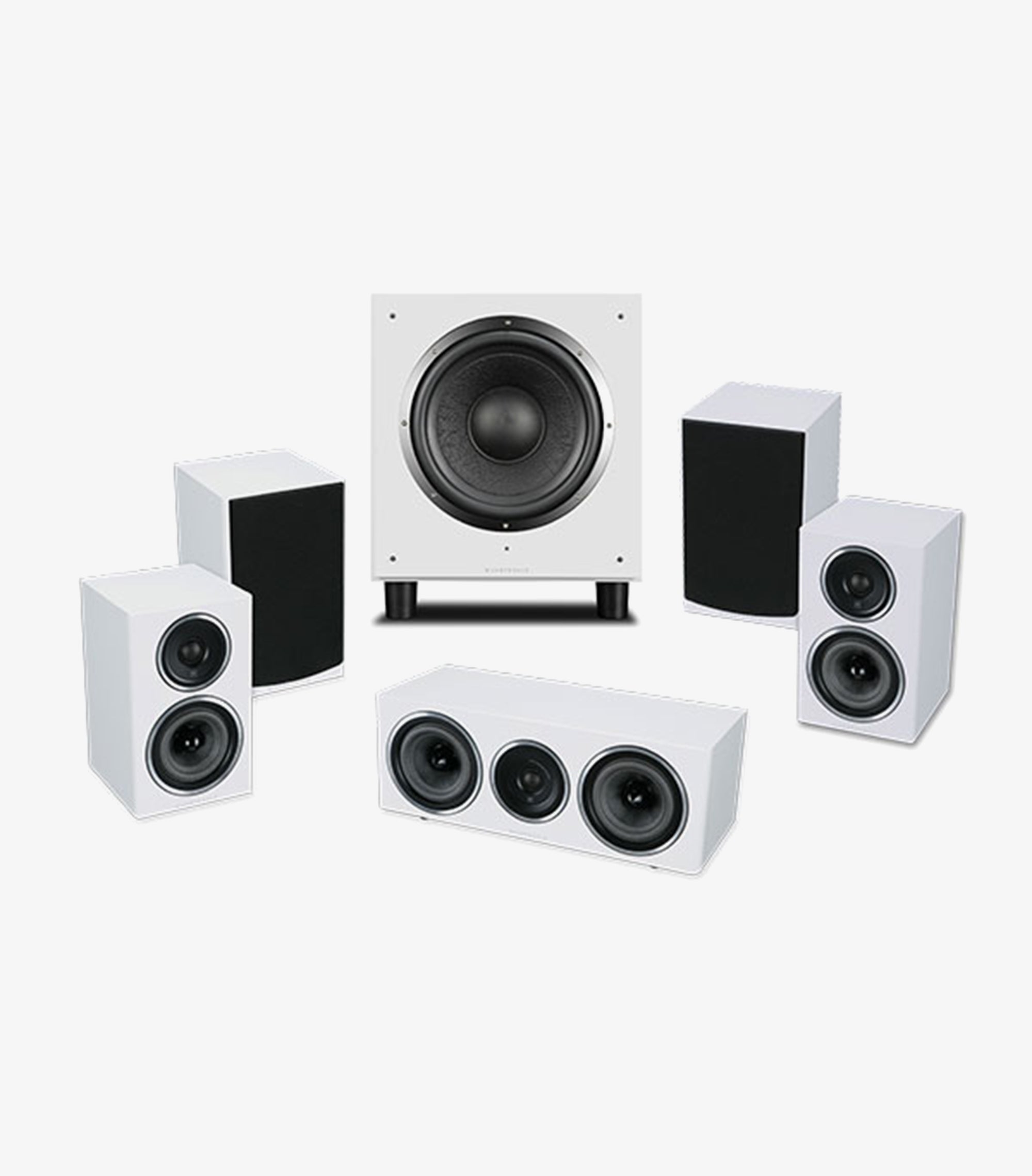

| Model | Diamond 11.0 | Diamond 11.CC |
|---|---|---|
| Bass driver | 4"(100mm) Woven Kevlar Cone | 4"(100mm) Woven Kevlar Cone X2 |
| Midrange driver | ||
| Treble driver | 1"(25mm) Soft Dome | 1"(25mm) Soft Dome |
| Sensitivity (2.83V @ 1m) | 85dB | 87dB |
| Nominal impedance | 8Ω | 8Ω |
| Frequency response (+/-3dB) | 75Hz ~ 20kHz | 85Hz ~ 20kHz |
| Dimensions (mm) | ||
| Height (on plinth) | 255mm | (145+10)mm |
| Width | 155mm | 420mm |
| Depth (with terminals) | (165+10)mm | (138+32)mm |
| Model | SW-10 (Subwoofer) | |
| Frequency Response | 40 - 120Hz ±3dB | |
| Amplifier Power Output | 200W | |
| Peak Power Output | 350W | |
| Line Input Sensitivity | 200mv for maximum output | |
| Crossover Range | 30 - 150Hz | |
| Inputs | Stereo Line In (2 x RCA Phono) Mono (LFE) Line In (RCA Phono) |
|
| Input Impedance | Line Input 10kΩ LFE 5kΩ |
|
| Signal-to-noise ratio (S/N) | ≥85dB | |
| Avg. Max Output @1m | 110dB | |
| Features | Phase inversion, Auto on-off | |
| Dimensions | Height: (358+58)mm(with feet) Width: 336mm Depth: (366+15)mm |
|
| Net weight | 15kg | |
| Finishes | Cabinet: Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle | |
| Accessories | IEC power cord |
